Threaded ball valve

Name: "Threaded ball valve"
Rating: 5 (193 reviews)

SKU: 6443818377

Model: Q11F、Q61F、Q81F、Q11PPL

Product Details

Product Specification

Type	2PC Threaded Ball Valve, 3PC Threaded Ball Valve, 1PC Threaded Ball Valve, 2PC Socket Welded Ball Valve, 3PC Socket Welded Ball Valve, 3PC Butt Welded Ball Valve, 1-PC Hex Threaded Ball Valve, 1PC Threaded Direct Mounting Pad Ball Valve, 2PC Threaded Dir	Model	Q11F、Q61F、Q81F、Q11PPL
Params	size range: DN6 – DN100 pressure rating: 1000 – 2000 WOG temperature: -20°C to 180°C body material: CF8 (304) / CF8M (316) seat material: PTFE connection: Threaded / Socket Weld / Butt Weld / Tri-Clamp actuator mount: ISO 5211	Material	carbon steel / SS304 / SS316
Applicable Industry	Petrochemical industry, petroleum refining, liquid cooling, nuclear power, chemical industry, metallurgy as well as mining, medical industry, food industry, national defense, military and urban construction and many other fields

Feature

1. Blow-out proof stem: Features a T-type thrust structure to prevent the stem from blowing out under high-pressure conditions, enhancing pipeline safety. 2. Multiple stem seals: Combines O-rings, V-type packing, and Belleville spring compensation; automatically compensates for packing wear to eliminate external stem leakage. 3. Optional anti-static device: Ensures electrical continuity between the ball, stem, and body to dissipate static electricity, making it suitable for flammable and explosive media. 4. Fire-safe design: Meets requirements for fire-safe applications. 5. Optional lockable handle: Prevents accidental operation and ensures on-site safety. 6. Multiple connection types: Offers flexible selection options. 7. Operating temperature range of -20°C to 180°C and pressure ratings of 1000–2000 WOG, suitable for diverse operating conditions.

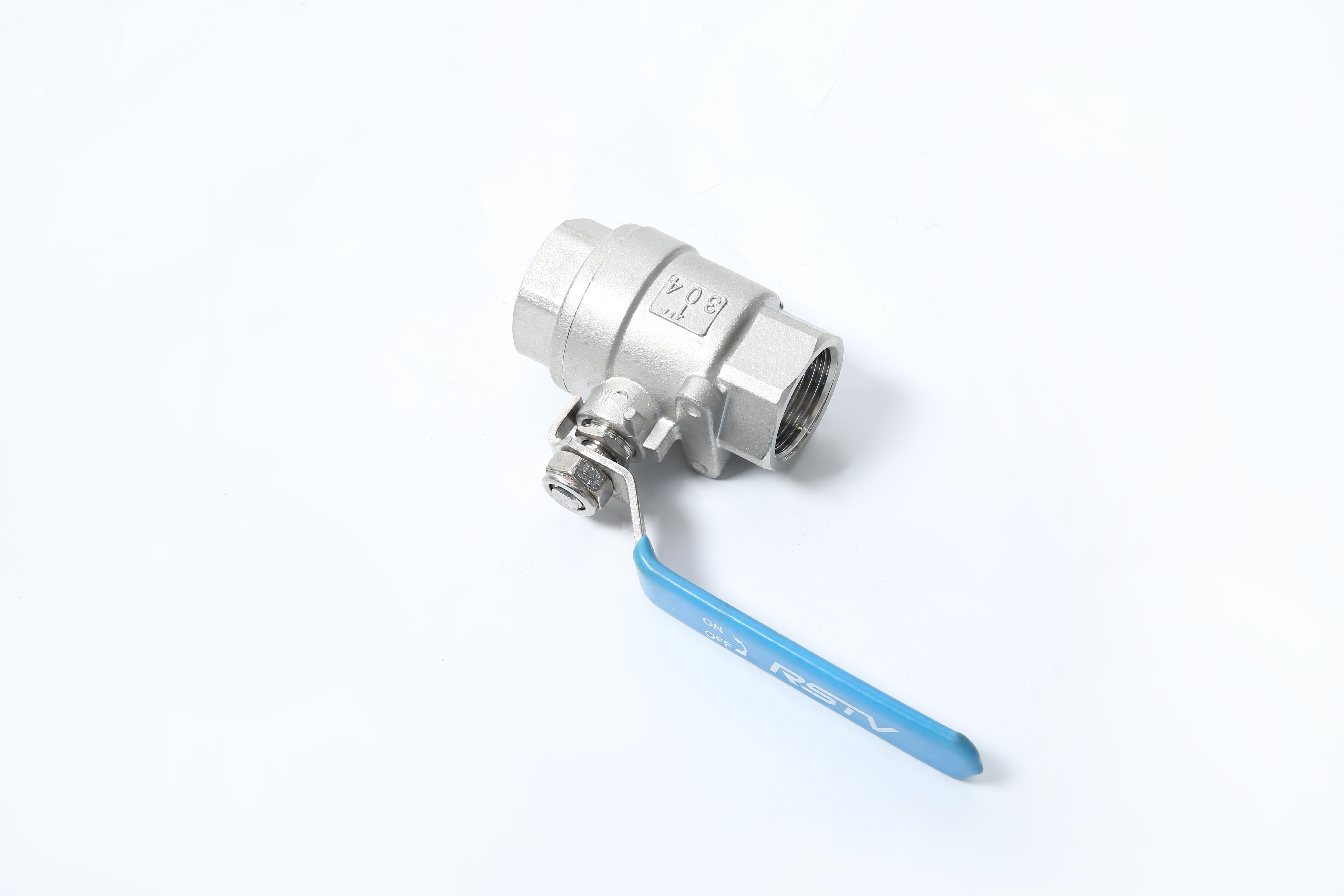

2PC Threaded Ball Valve

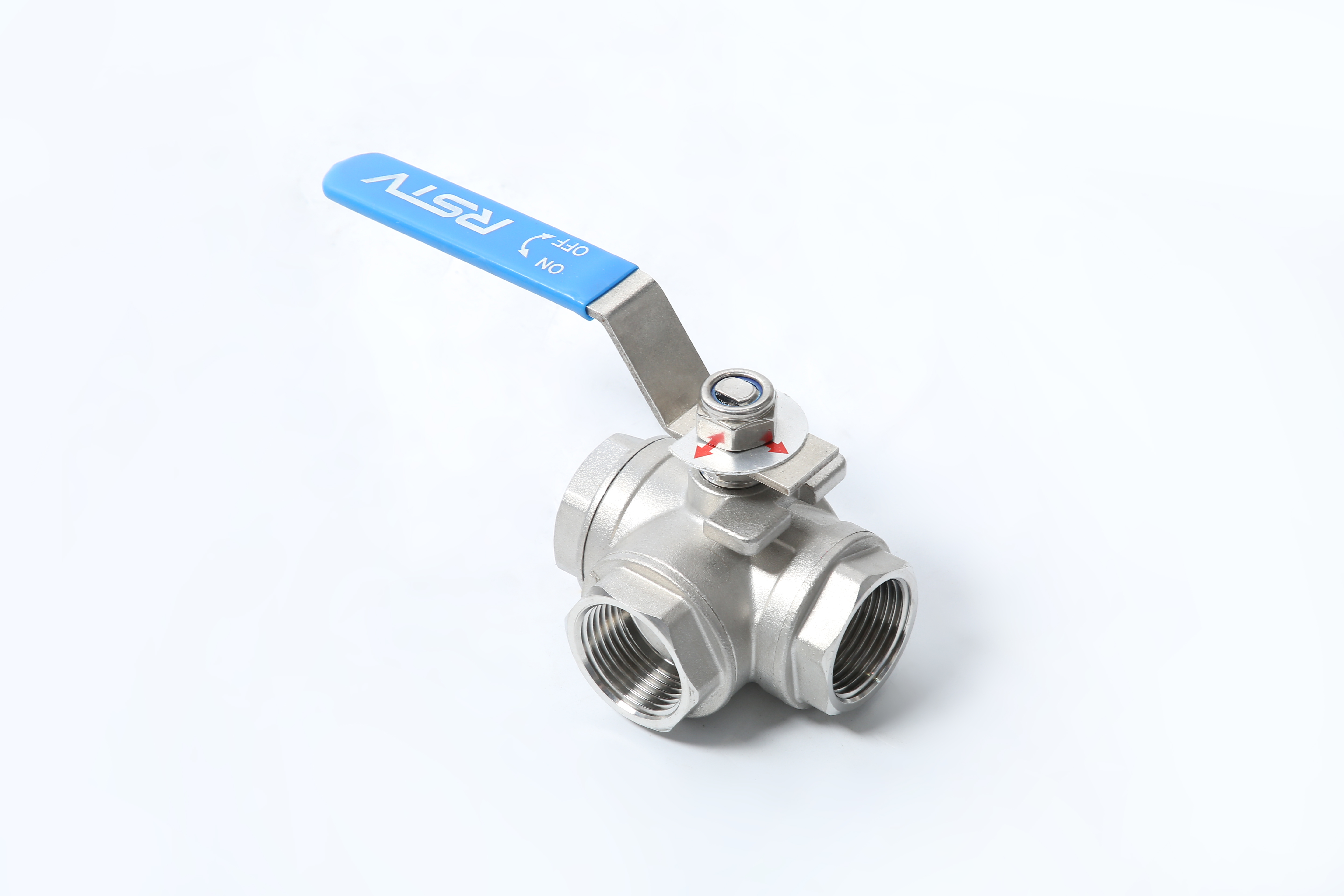

3 Way Threaded Ball Valve

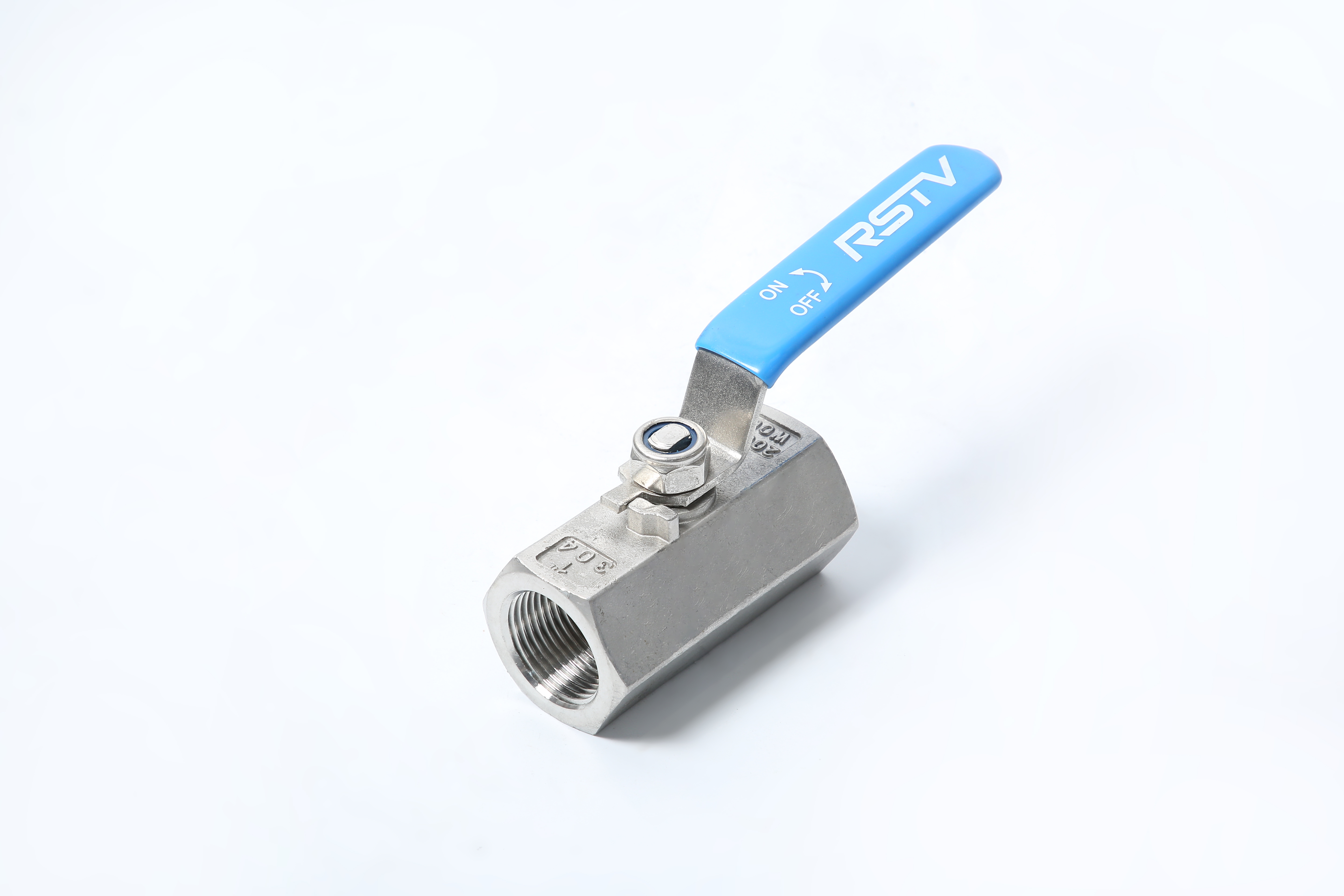

1 PC Threaded Ball Valve

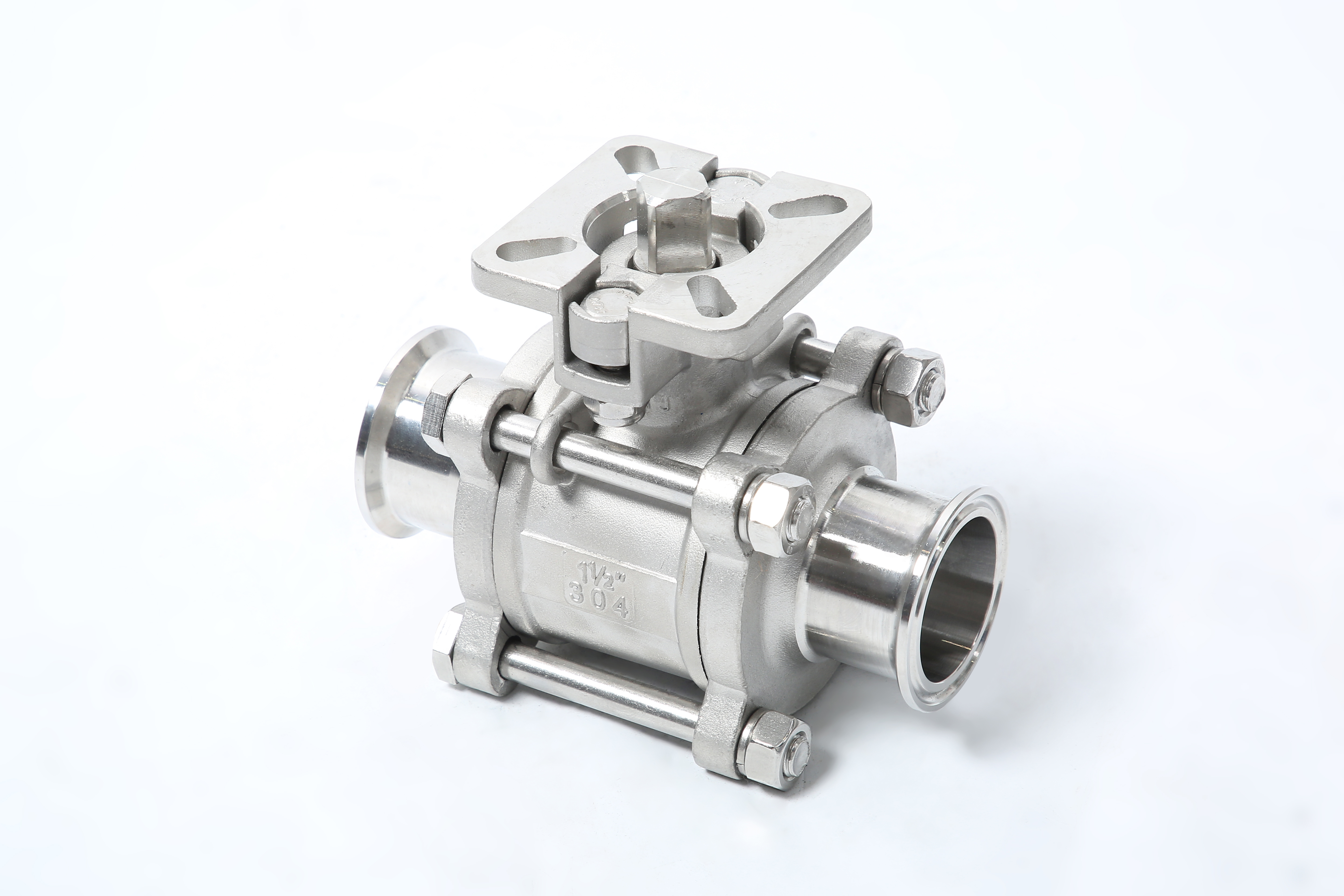

3 PC Clamp End Ball Valve

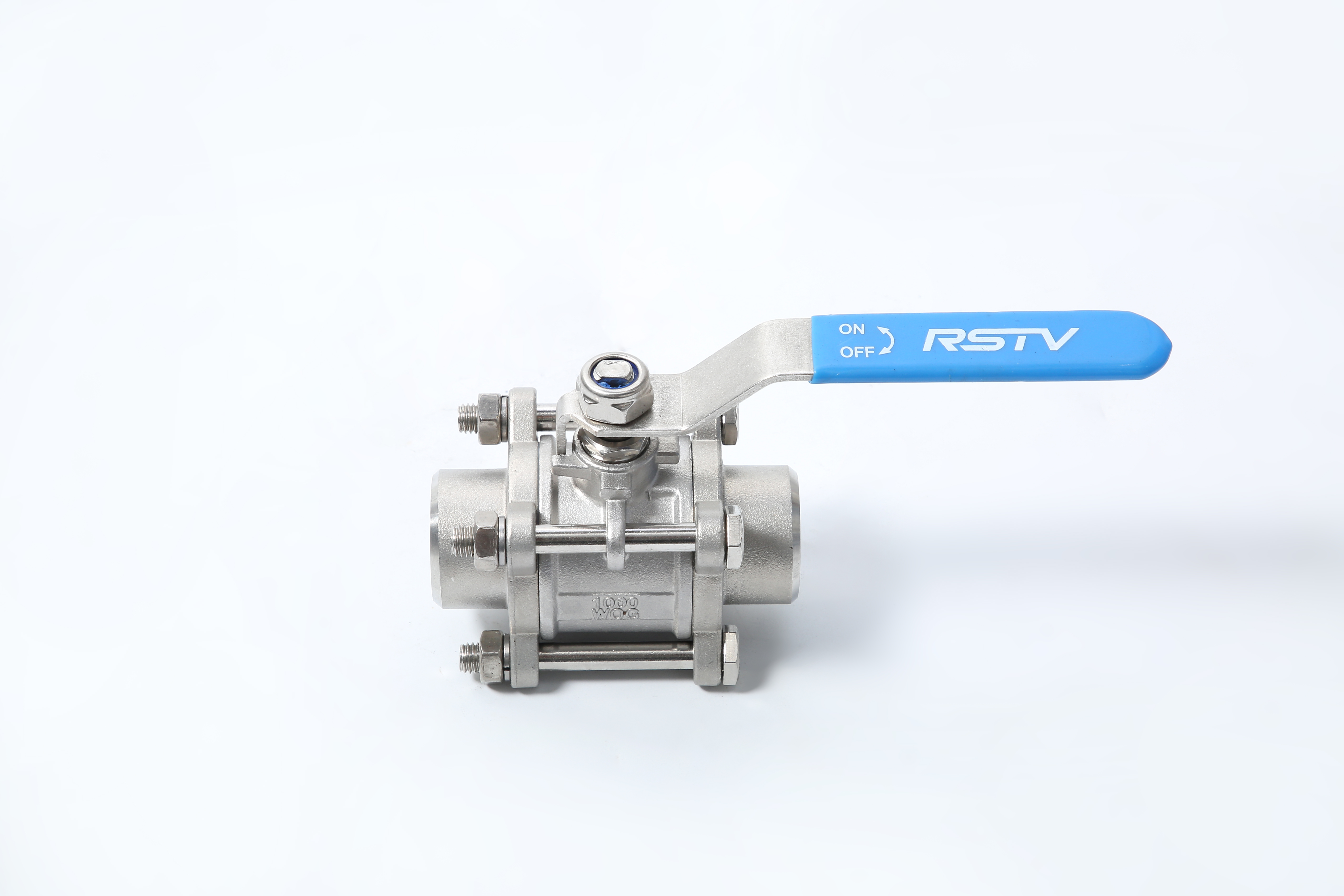

3 PC Butt Welded Ball Valve
